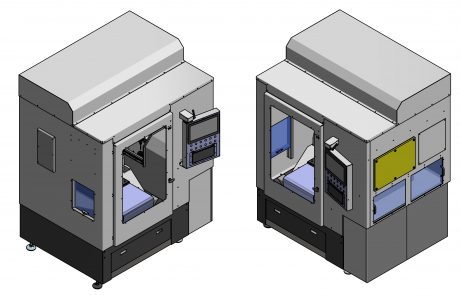

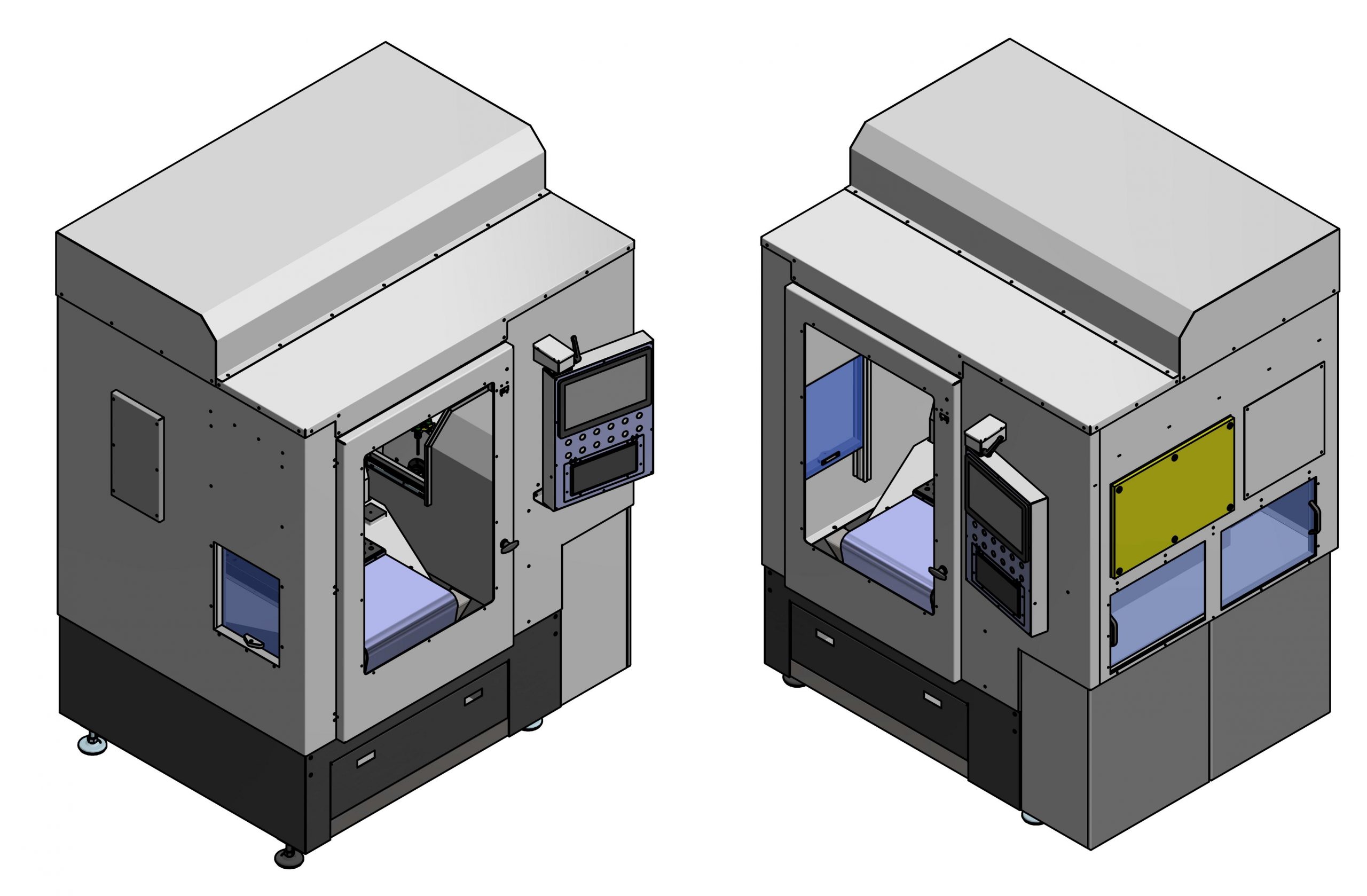

HSC 600 MG
95.000,- € net
Machine price with specified standard equipment
(Information on Our Price Transparency)
Our “mid-range” model – equipped with the standard HSK-E40 9kW spindle and the 40 station tool changer for up to 200mm long tools you can handle almost every task
Providing even more versatility when used with a 4th axis, which can either remain permanently mounted on the large table or be quickly and accurately mounted using the standard fitting holes.
Standard equipment
- T slot table with additional fitting holes 16H7 in 50/100mm grid
- Hand wheel for controlling up to 6 axis with override for feed rate and spindle rpm
- automatic tool length measurement and break detection
- joblist and zero point offset managemt
- network ready machine control for easy access and integration
- semi automatic central lubrication system
Technical data
| Features | HSC 600 MG |
|---|---|
| Axis count | 3 |
| Travel (XYZ) | 640 mm x 600 mm x 380 mm |
| Axis of rotation | optional |
| Swivel axis | optional |
| Mounting surface (XY) | 600 mm x 600 mm |
| max. table load | 250 kg |
| Diffuser height Z | 370 mm |
| max. speed | 20 m/min |
| Spindle and tools | |
| Speed range rpm | 3.000 – 32.000 |
| Spindle power (water cooled) | 6kW (S1-100%), 9kW (S6-40%) |
| Tool clamping | HSK-E40 |
| Tool changer | 40x |
| max. length from lower edge of spindle cone | 200 mm |
| max. tool length (depending on collet length) approx. | 130 mm |

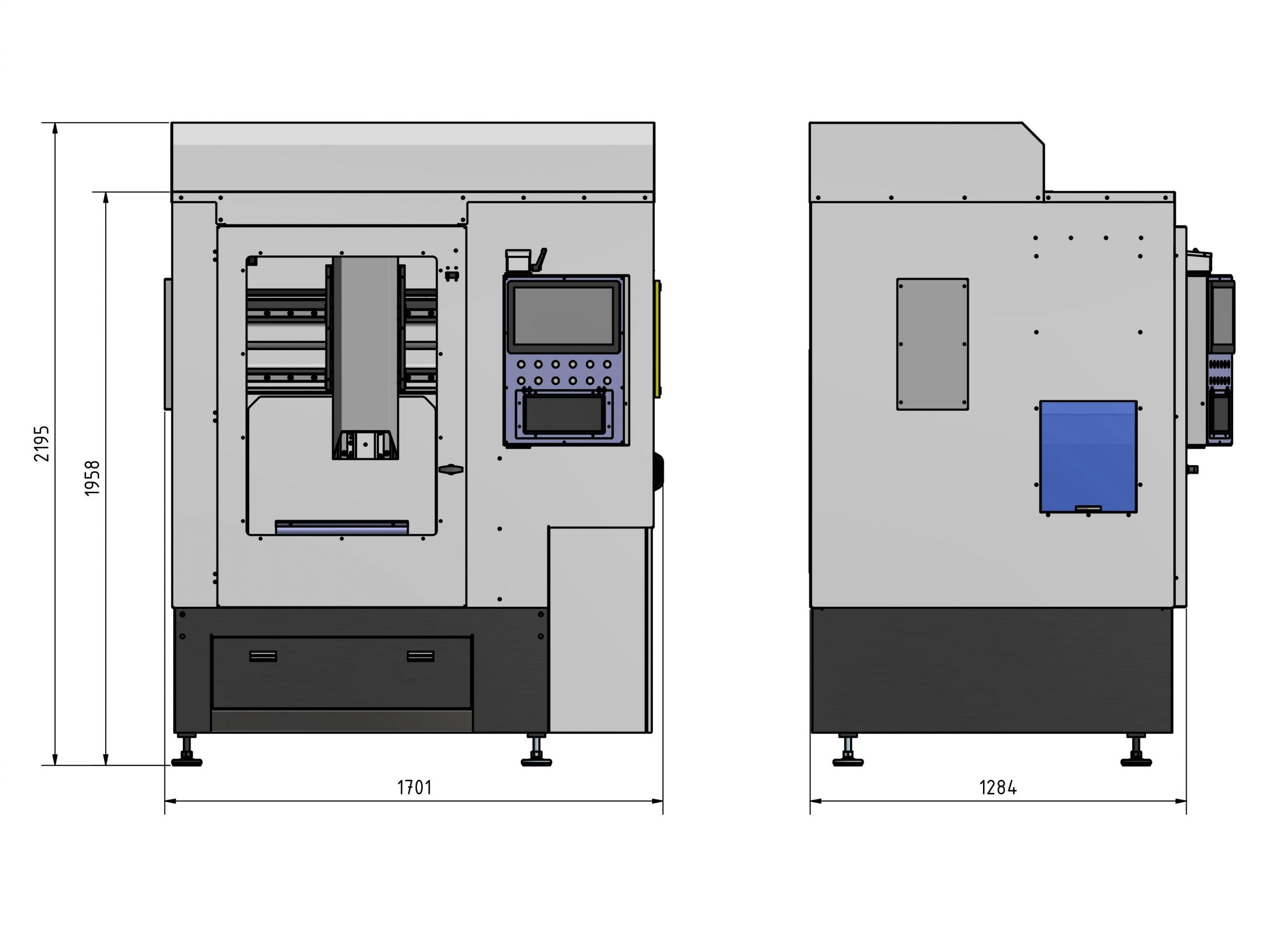

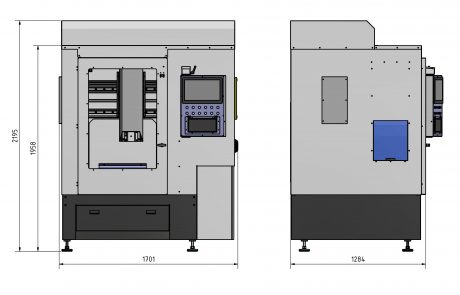

| Dimensions (XYZ) |
1700 mm x 1300 mm x 2170 mm |
| Table load | 1500 kg |
| Compressed air connection | 6-7 bar |
| Connected load | 3×400 V / 16 A |
| Power | 10 kVA |
Optional accessories
